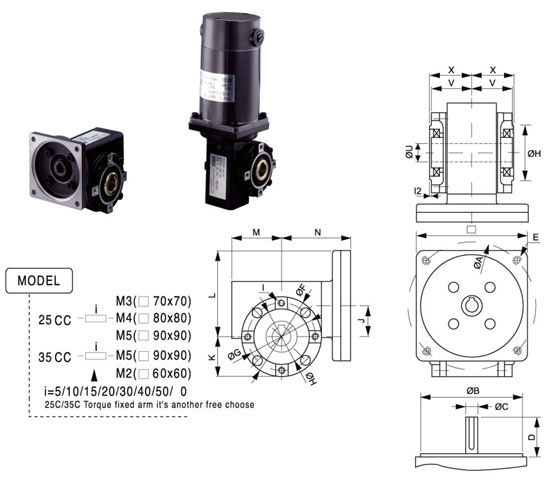

  • Worm Gear-25/35 CC M Series

Model Input shaft side Output shaft
J □ ØA ØB ØC D E KEY ØU V KEY
25 70×70 82 64 8 32 M5 3×3×25 15 32 5×5×66
80×80 94 73
90×90 104 83 10 M6 4×4×25
35 90×90 104 83 12 32 M6 4x4x25 18 39.5 5×5×80
60×60 70 50 14 30 M5 5×5×25



Model Fixed base Outer part Maximum torque Weight
(kg)
J ØF ØG ØH I I2 X K L M N
25 65 55 45 M6×7 1.5 33.5 32.5 60 40.5 56.5 150 1.1
65
70
35 80 70 52 M6×7 2.5 42 40 80 47.5 64.5 300 1.9
66 65.5
